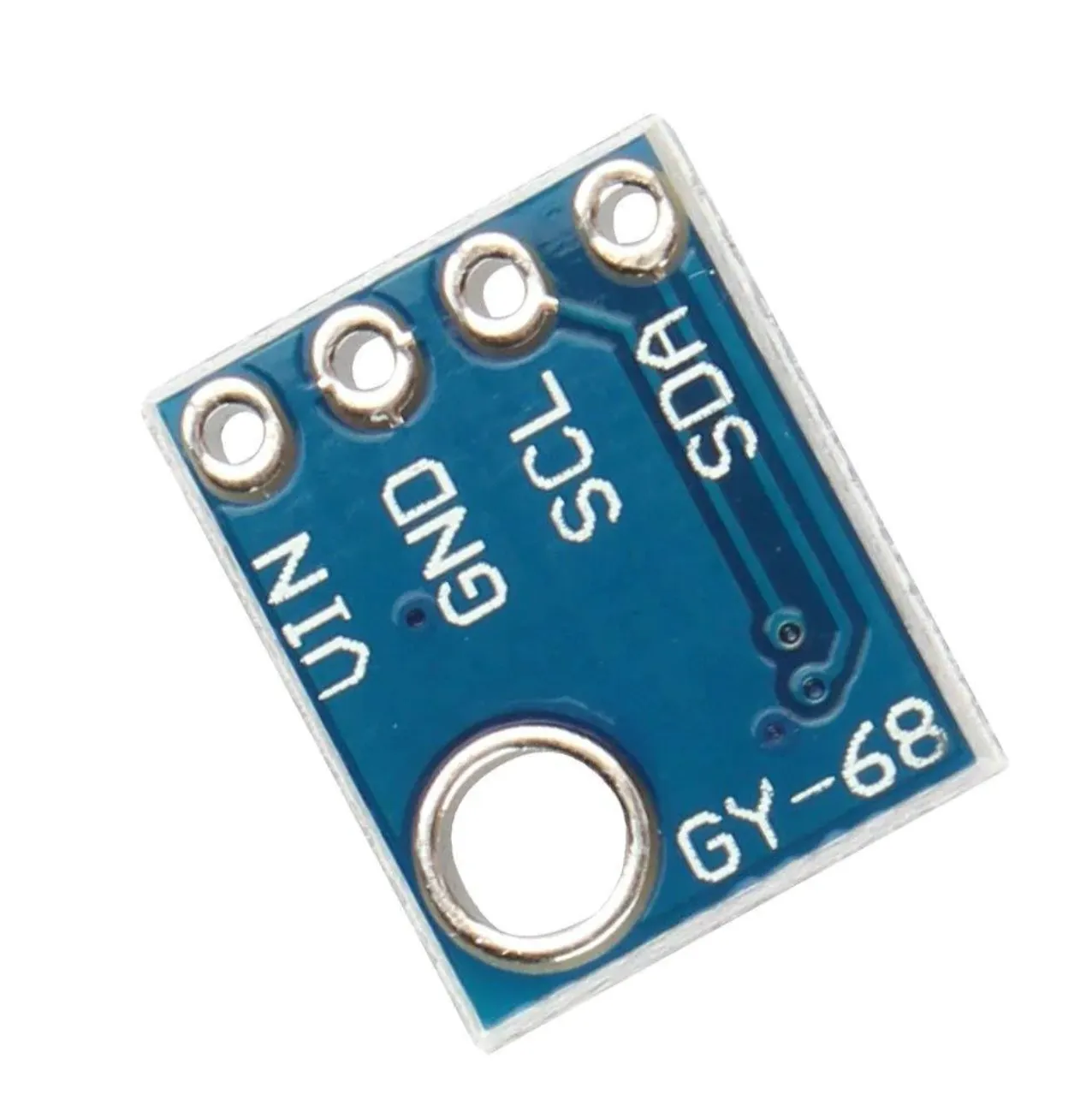

This precision sensor is the best low-cost sensing solution for measuring barometric pressure and temperature. Because pressure changes with altitude you can also use it as an altimeter. Using the sensor is easy. If you're using an Arduino, simply connect the VIN pin to the 5V voltage pin, GND to the ground, SCL to I2C Clock (Analog 5) and SDA to I2C Data (Analog 4). Download the BMP180 Arduino library and example code for temperature, pressure and altitude calculation. Immediately you'll have a precision temperature, pressure and altitude data.
- 1.8V to 3.6V Supply Voltage
- Low power consumption - 0.5uA at 1Hz
- I2C interface
- Max I2C Speed: 3.5Mhz
- Very low noise - up to 0.02hPa (17cm)
- Fully calibrated
- Pressure Range: 300hPa to 1100hPa ( 9000m to -500m)
- Weight: 1.18g
- Size: 21mm x 18mm
