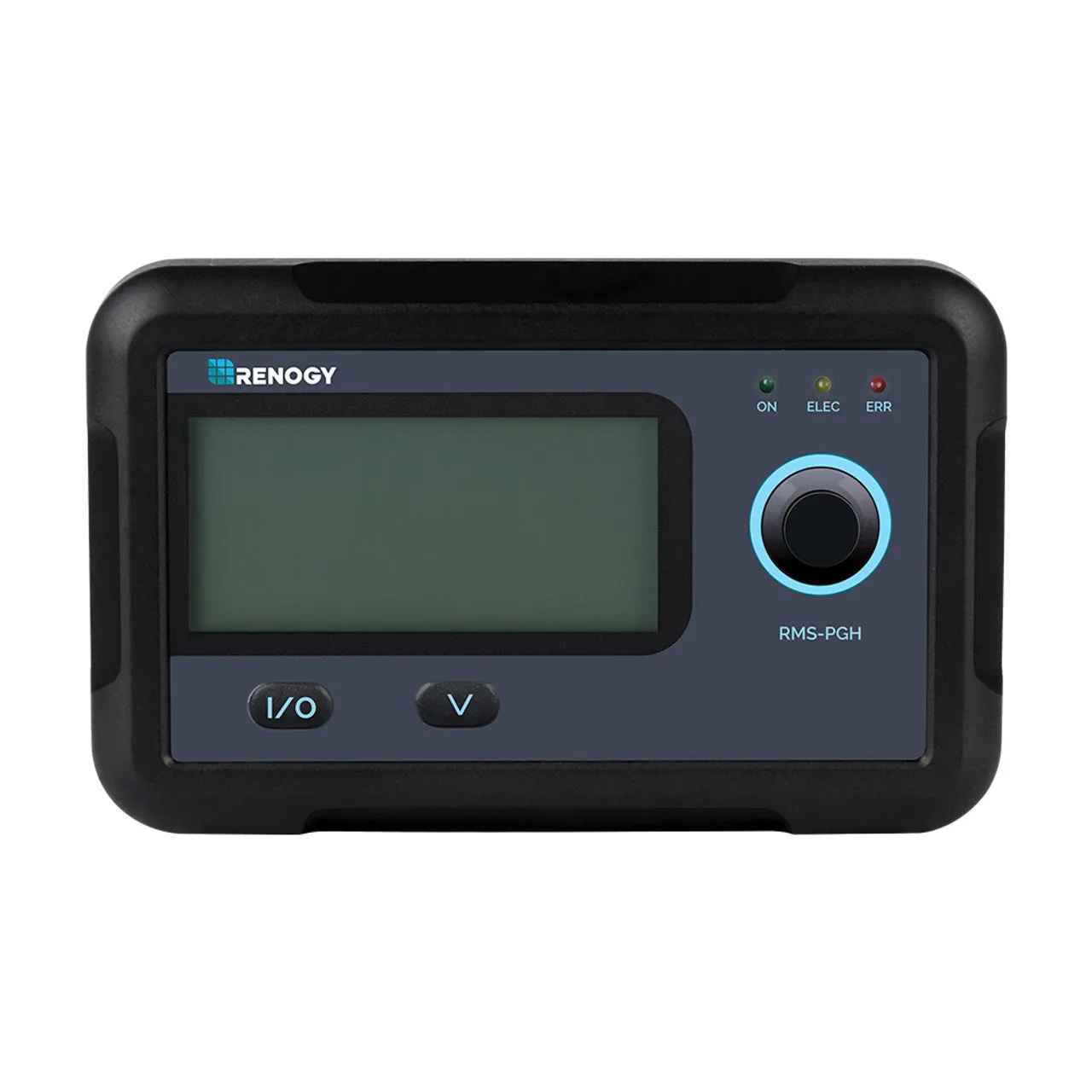

Renogy RMS-PGH - Renogy PGH Inverter Series Remote Monitor
Take control of your solar power system with the Renogy RMS-PGH Inverter Series Remote Monitor. Designed for use with the PGH1 2000W Power Saving Inverter, this handy device allows you to monitor and track your solar-inverter system easily.

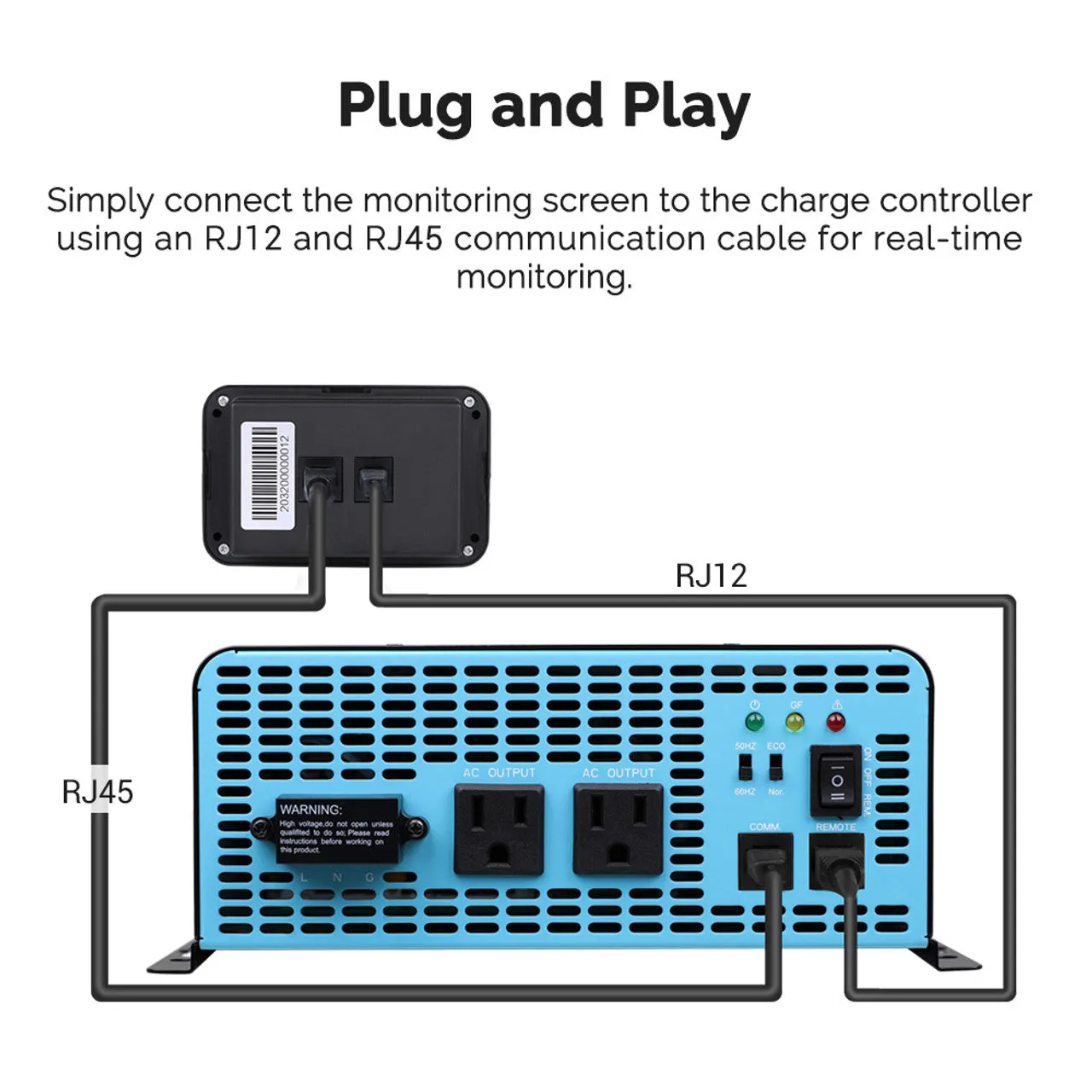

With a sleek and stylish look, the remote monitor can be flush-mounted on RVs and camper walls. It combines LCD screen monitoring and wired remote control for convenience. An easy plug-and-play device, the monitoring screen can be connected to the charge controller using an RJ11 and RJ45 communication cable for real-time monitoring. With accurate readings, a comprehensive protection system with warning codes, easy navigation, and real-time energy generation, battery performance, and system status, you can optimize your system for maximum efficiency and savings.
Stay connected with your Renogy PGH1 2000W Power Saving Inverter with the Renogy RMS-PGH remote monitor. Order yours today and monitor your energy savings like never before!
Highlights:

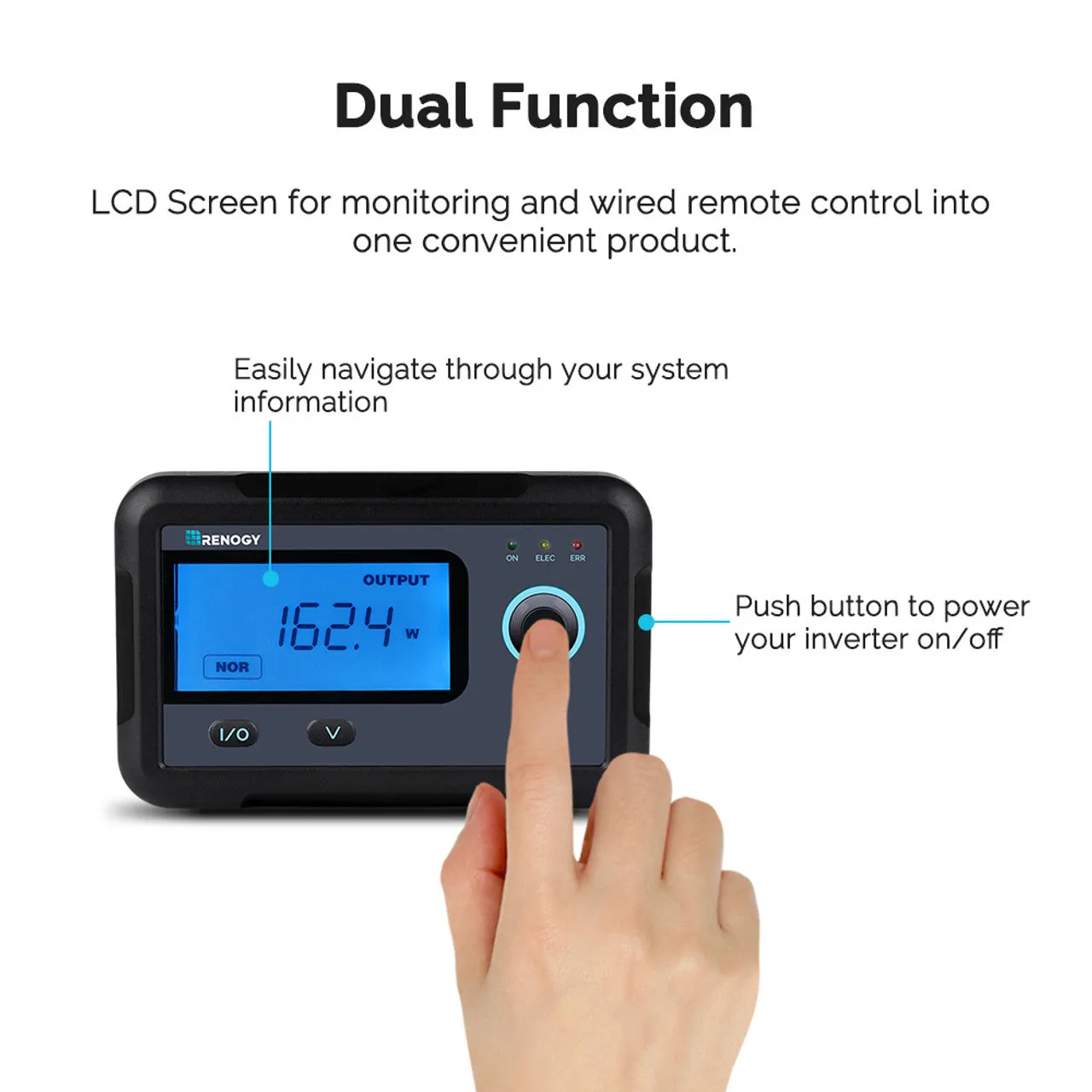

• Dual function
• Plug and play

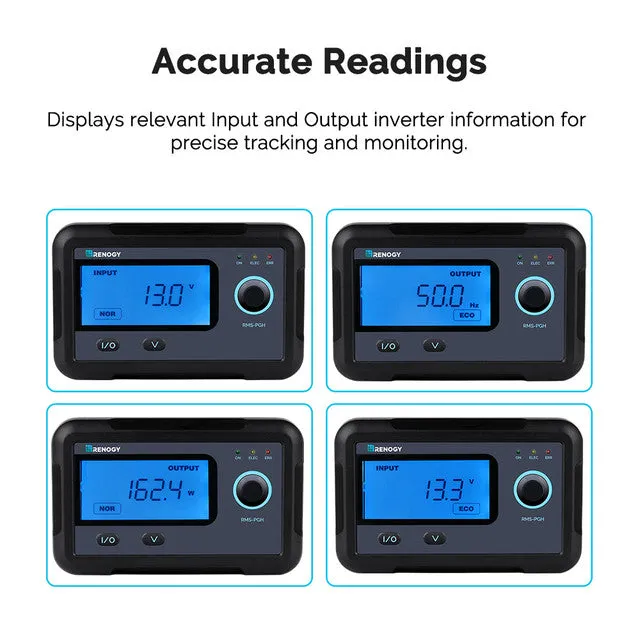

• Accurate readings

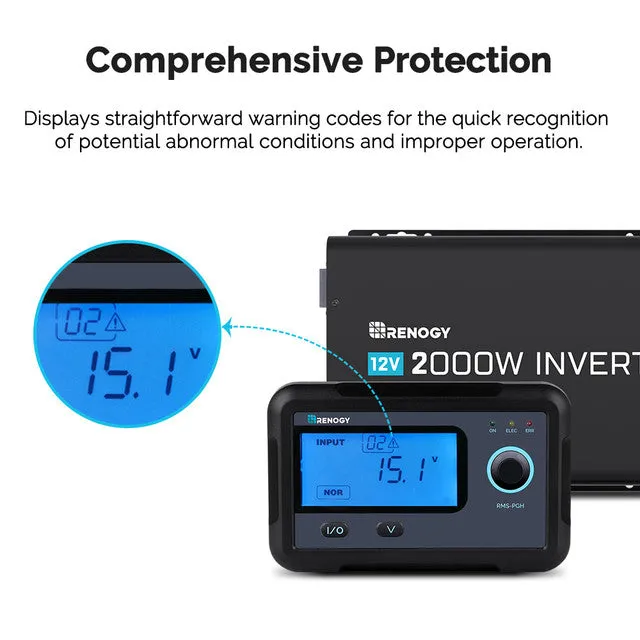

• Comprehensive protection
SPECIFICATIONS:
Electrical Specifications
Supply Voltage: 5VDC
Supply Current: 30mA
Power Consumption: <1W
Operating Temperature Range: -4°F~113°F / -20°C~45°C
Voltage Accuracy: ±0.1V
Current Accuracy: ±0.1A
Mechanical Specifications
Communication Port: RJ45 (RS485 Protocol) & RJ12
Display: Backlit LCD
User Interface: 2 Front Menu Buttons, 1 On/Off Push Button
Mounting System: Wall Mount
Dimension: 4.33 x 2.76 x 1.25 inch / 110 x 70 x 31.8 mm
Weight: 0.14 lbs / 62 g
Wire Length: 2 x 16.4ft / 5m
Mounting Screw: M2.9x13mmAccessories: 1-Year Material Warranty
WHAT’S IN THE BOX:
1 x Monitoring Screen for PGH Inverter Series
